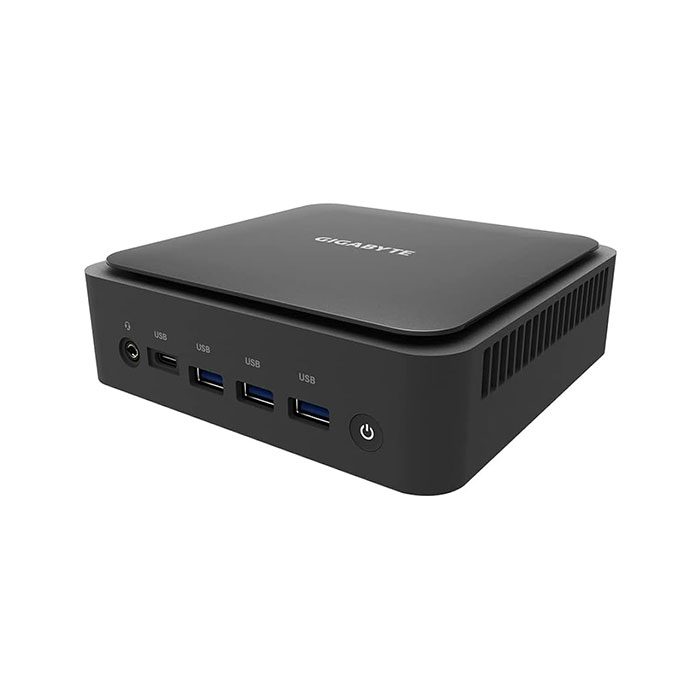

Gigabyte Brix Mini PC Intel i5 1240P


Categories: ,



4‎8.3 mm x 134.2 mm x 139.1 mm (1.9" x 5.3" x 5.4")

Motherboard Size

125mm x 128.8 mm (4.9' x 5.1")


12th Generation Intel® Core™ i5-1240P Processors, 12 Cores (4P+8E) 16 Threads, 12MB L2 Cache, Frequency 1.7GHz-4.4GHz(P Core), 28W


2 x SO-DIMM DDR4 slots, support up to 3200MHz
Max. 64GB


2.5G LAN (Intel i225V)

Wifi Card

Intel WI-FI 6E / BT 5.2 Module


Realtek ALC897 HD audio


Intel® Iris® Xe Graphics, 80EU

HDMI Resolution (Max.)

1x HDMI2.1 with HDCP 2.2
Max Resolution 7680 x 4320@60Hz
1x HDMI2.0b with HDCP 2.2
Max Resolution 3840×2160@60Hz

Mini DP Resolution (Max.)

Mini DP supports : DP1.4a
Max Resolution 3840×2160@60Hz USB 4.0 Type-C DP supports : DP1.4a
Max Resolution 3840×2160@60Hz


1 x PCI-e Gen4 x 4 /SATA M.2 2280 slot

Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O

1 x Power Button
1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
1 x head phone jack with MIC

Rear I/O

1 x HDMI(2.1)
1 x HDMI(2.0b)
1 x mDP
1 x USB 4.0 (Support Intel Thunderbolt 4) w/ DP alt mode
2 x USB 2.0 type A
1 x RJ45
1 x DC-In
1 x Kensington lock slot


Integrate TPM module* (in selected regions /countries)

Power Supply

Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

Support OS

Windows 11 64Bit
Windows 10 64bit
